Product Description
P3 Small LED Sign Indoor Full-Color Programmable LED Screen
| Unit Module | Item | Parameter |
| Model Number | P3 outdoor | |
| Module size | 192mm*192mm | |
| Pixel pitch | 3mm | |
| Pixels Density | 111111dot/m2 | |
| Pixel configuration | 1R1G1B | |
| Package mode | SMD1921 | |
| Pixel resolution | 64dots(W)*64 dots(H) | |
| Max Power | 23W | |
| Weight | 0.38kg | |
| Drive type | Constant drive | |
| Scan mode | 1/16scan | |
| Port type | HUB75 | |
| Brightness of white balance | ≥5500cd/SQM | |
| Best viewing distance | 3M~20M | |
| Best viewing angle | 160°(W) 120°(H) | |
| Relative humidity | 10%-95% | |
Power | Working voltage | DC 5V |
| Average Power consumption | <200W/M2 | |
| Max.Power consumption | <800W/M2 | |
| Current | <18mA(single LED) | |
Main technical parameter | Driving device | Constant drive IC |
| Refresh frequency | >1920HZ | |
| Grey scale/colors | 16384gray level/16.7M colors | |
| MTBF | >9000hours | |
| Power switch | Automatic switch |

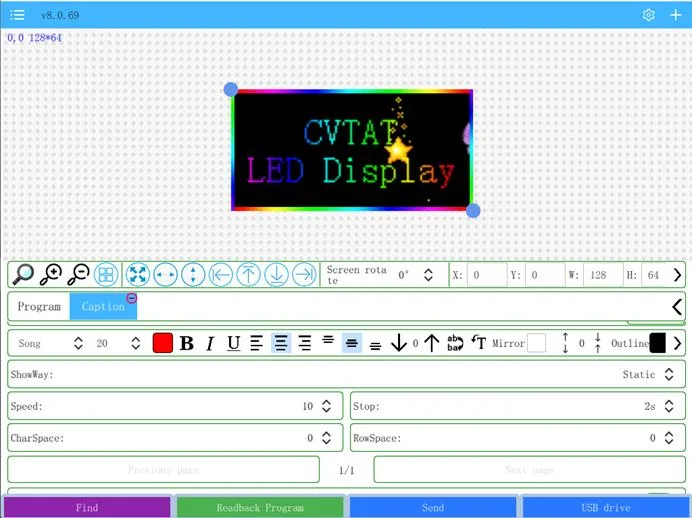

How to program with PC
How to program with Android/iOS
1.Programmable small LED screen, Total pixels 128*64 dots,The resolution is lower than LCDs and TVs, and the brightness is higher than them. It is this pros and cons that make the displayed content grainy enough to be viewed from a distance.

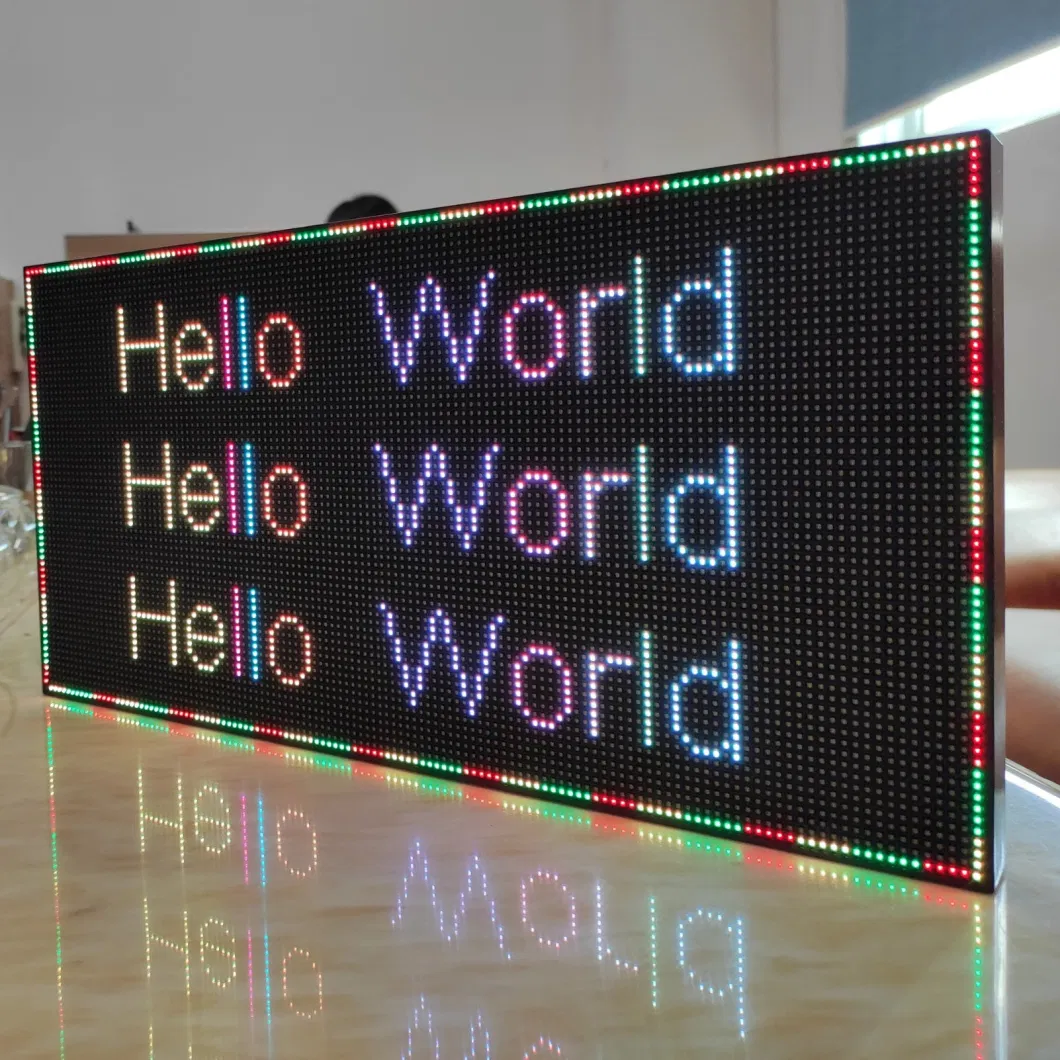

2.display full-color text, text can be added with background, text can be scrolled,Text Ads Scrollable Suitable for Advertising Signs.
3.Multiple playback styles, please watch the demo video.
4.Requires a certain amount of hands-on ability.

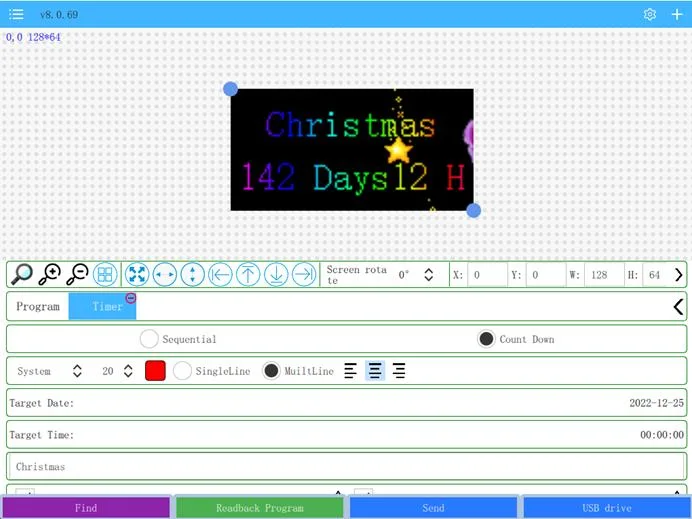

programming calendar, countdown
calendar, countdown

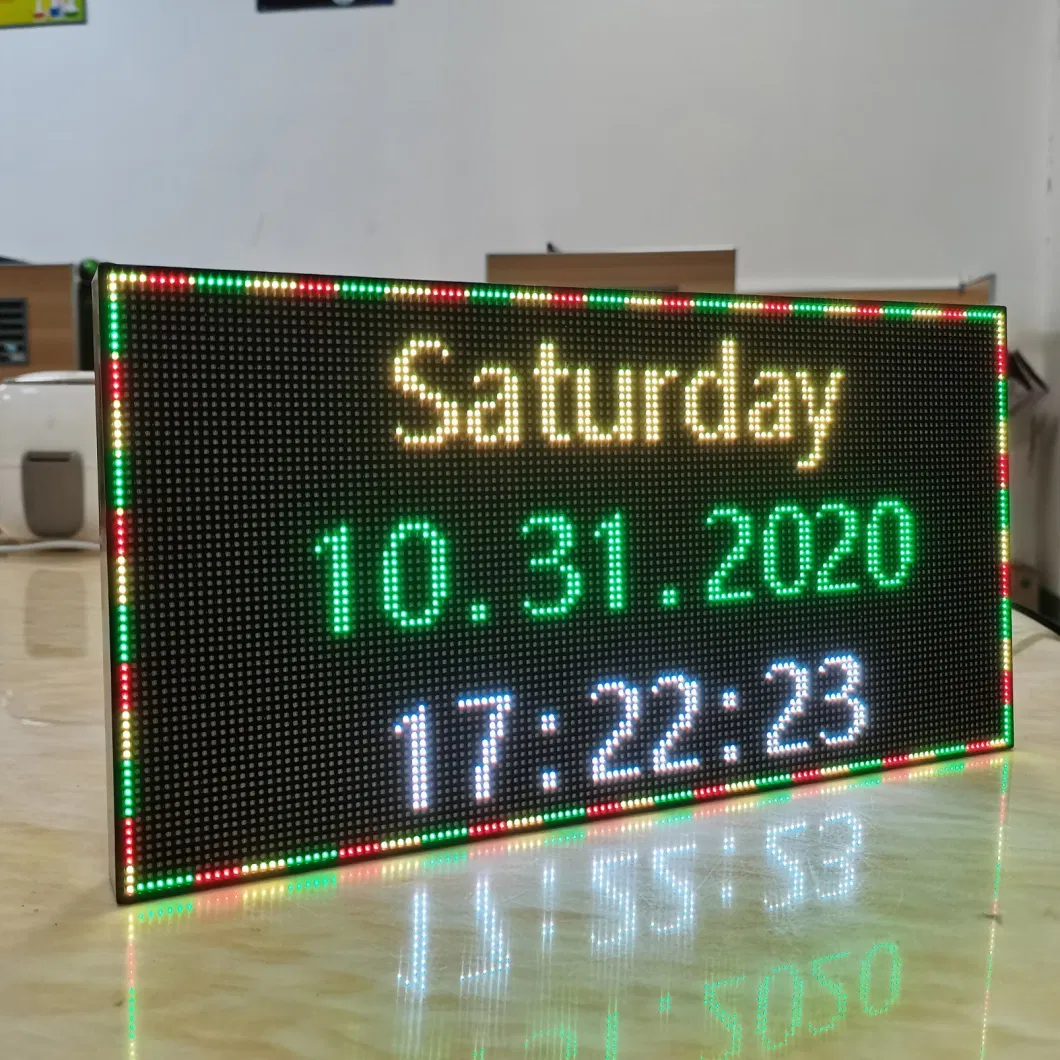

Calendar function:
Display electronic clock, support proofreading time, date, day of the week, time, you can set different colors separately
Timing function:
Support positive timing,countdown
Pay special attention
No other functions,does not support images and videos, No Internet function, mobile phone or PC connected to its WiFi hotspot
Communicate with it to send the text you want to display
Download the programming software according to the manual website
Software supports Android, iOS, Windows(Linux and MAC are not supported)
Powered by external power adapter
Installation method: standing on the desktop,Other installation methods are not supported
Language:English,Japan,Korea,Portugal,Russia,Thailand,Vietnam,etc.

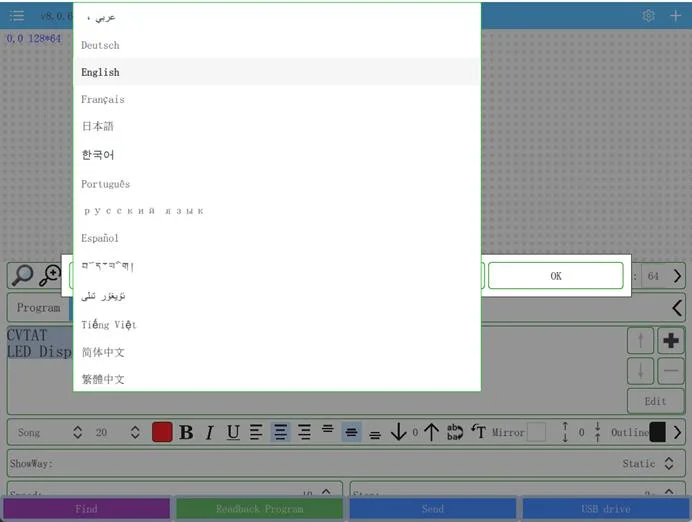

Please check the image below for language switching options to see if the language
Service Introduction
1. LED Display solution consultation, remote assistance.
2. Free debugging. Built-in loading file
3. Air freight, rail freight, sea freight rate consultation; Assist in choosing the most suitable transportation method.
4. Customized shipping packaging, wooden boxes, flight boxes, cartons, etc.
CVTAT researches has strictly LED display quality control management and develops full range of LED application products, variety of product structures. Such as:1.Leasing products 2.billboard 3.Highway billboards 4.Unregular-shape LED display 5.Football LED display, Etc. The applications can be varied such as commercial plazas, shopping centers, transportation facilities and stadiums.
